High Reliability: Good line sealing, resistant to humidity and oxidation, and corrosion.
High Integration: Small, lightweight, saving overall module space, making the overall module lightweight and convenient.
Simple Installation: Simple assembly with modules, more cost-effective than wiring solutions.
Strong Applicability: Easy to modularize and standardize, flexible connection methods with cells, capable of multiple series and parallel connections.
R&D Capability: Rich design and manufacturing experience in CCS; able to provide a complete design solution based on customer product needs, with fast and flexible communication capabilities to respond to customer demands promptly.
Featured Products
|
Name |
Product Length |
Voltage Resistance |
Insulation Performance |
Product Advantages |
|
Injection Molding CCS |
Max length approx. 1000mm |
2700VDC 60S 1mA |
1000VDC 60s 500MΩ |
1. Overcurrent fuse protection 2. Isolation plate fixing aluminum bus 3. Stress release for cell thermal expansion 4. Flat FPC structure to avoid short circuit risks |
|

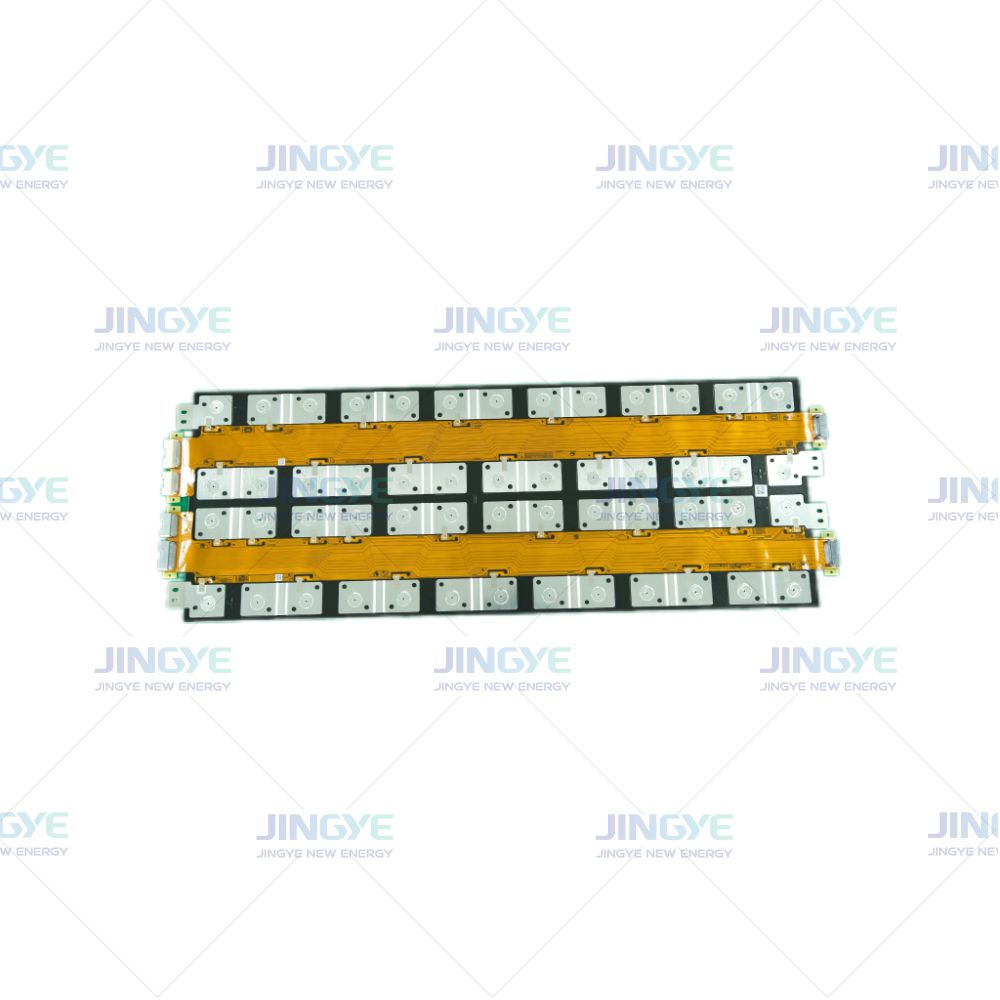

Thermoforming CCS |
Max length over 2000mm |
3800VDC 60S 1mA |
1000VDC 60s 500MΩ |
1. Overcurrent fuse protection 2. Aluminum bus fixed to blown isolation plate 3. Stress release for cell thermal expansion 4. Flat FPC structure to avoid short circuit risks |
|
Direct Welding CCS |
Max length over 2000mm |
3800VDC 60S 1mA |
1000VDC 60s 500MΩ |
1. No nickel sheets, using ultrasonic welding 2. FPC fingers welded to aluminum bus 3. Low cost |
Technical Parameters
|
No. |
Process Type |
Application Scenario |
Naming |
Specification Size |
|
1 |
Thermoforming |
Energy Storage |
1P13S |
990*173mm |
|
2 |
Thermoforming |
Energy Storage |
1P26S |
974*350mm |
|
3 |
Thermoforming |
Blade Battery |
1P52S |
2082*218mm |
|
4 |
Injection Molding |
Automotive |
1P12S |
430*170mm |
|
5 |
Thermoforming |
Automotive |
1P17S |
673*204mm |
|
6 |
Direct Welding |
Automotive |
1P61S |
1249*462mm |
