High Energy Density: Utilizes 314Ah high-energy density cells.
High Safety: Full temperature range/voltage monitoring, chemical and water firefighting systems.
High Efficiency: >90% charge-discharge efficiency.
Expandability: Cabinets can be arranged in series based on project to meet different scale and power requirements.
Commercial and industry Energy Storage cabinets: Customization Available
Commercial and Industrial Energy Storage Cabinet Parameters
|
Energy Storage Parameters |
Storage Capacity |
LFP-261KWh |
|
|
Storage Configuration |
314Ah, lithium iron phosphate battery system |
|
|
Combination Form |
5*1P52S |
|
|
Nominal Voltage |
DC 832V |
|
|
Cycle Times |
>8000 times (90%DOD, remaining 70%,25℃) |
|
Environment |
Charging Temperature |
0℃~55℃ |
|
|
Discharging Temperature |
-20℃~55℃ |
|
|
Storage Temperature |
-20℃~60℃ |
|
|
Relative Humidity |
0%RH~95%RH, non-condensing |
|
|
Operating Altitude |
≤4000m (power derating above 3000m) |
|
|
Temperature Difference |
3℃ in PACK, 5℃ in cabinet |
|
Lifetime |
Equipment Full Lifecycle |
10 years (2 charges and discharges daily, considering 3% annual decay) |
|
Others |
Communication Method |
CAN/RS485/ Ethernet |
|
|
Protection Level |
IP55, salt fog protection (battery compartment) |
|
|
Cooling Method |
Liquid cooling |
|
|
Fire Protection |
Aerosol |
Technical Parameters
|
Cell Parameters |
280Ah/314Ah |
|
Combination Method |
L173F314-1P52S |
|
Rated Voltage |
166.4V |
|
Rated Capacity |
314Ah |
|
Rated Energy |
52.249kWh |
|
Cooling Method |
Liquid cooling |
|
Rated Rate |
0.5P |
|
Dimensions |
1152.5*790*245mm |
|
Example |
|
1. Peak Shaving and Load Management: Store low‑cost energy and discharge during peak demand periods to reduce operational electricity costs.
2. Backup and Uninterrupted Power: Provide instantaneous power support for critical loads in factories, warehouses, and commercial facilities.
3. Renewable Integration: Work with solar or wind systems to balance intermittent generation and increase renewable self‑consumption.
4. Grid Support and Demand Response: Participate in auxiliary grid services where stored energy can be dispatched for frequency or demand regulation.
Daily energy consumption below approximately 1–3 MWh, with regular peak-valley electricity price differences
Small Commercial & Industrial facilities requiring localized energy storage and backup support
Commercial buildings, retail centers, offices, and small manufacturing workshops with fluctuating daytime electricity demand
Projects with limited installation space, requiring compact and high-density system configuration
Distributed renewable energy integration, such as rooftop solar + storage applications
Users seeking lower initial investment with future expansion flexibility
Large-scale Industrial energy dispatch projects requiring centralized multi-MWh storage capacity
Utility-scale renewable integration systems
Grid-side frequency regulation applications with high continuous output requirements
Heavy Industrial operations with extremely high power fluctuation loads
Related Case

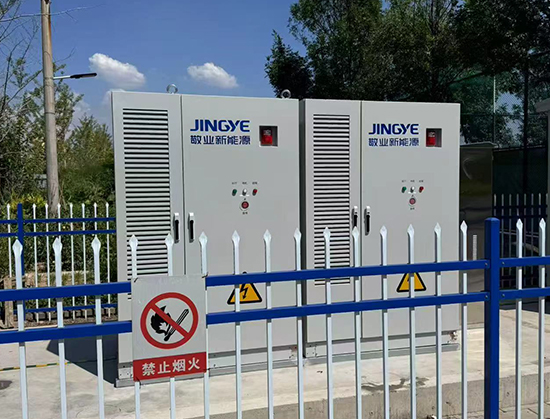

Dual Empowerment: Peak Shaving & Valley Filling + Emergency Backup Power!
